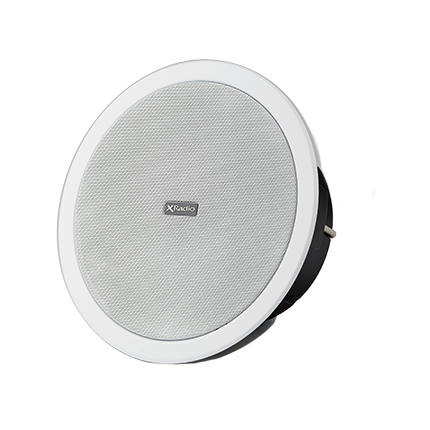

DXR-3100/3400
Features
- RF Data/Audio Receive
- Built in BLE
- - Remote setting
- - Firmware Upgrade
- - MP3 download
- Built in SD Card
- - MP3 Data Storage
We are dreaming of becoming a leader
in digital wireless communication
Challenging the global wireless communication market with original ideas and unique product development.
Products
Wireless
Broadcasting System
- Products
-
Wireless
Broadcasting System
| General | |
| Frequency | VHF* : 136~174MHz |
|---|---|
| UHF* : 403 ~ 470MHz | |
| Channel Space | 12.5KHz |
| Frequency Stability | ±1 .Oppm (-30 - +60°C) |
| Digital Vocoder | AMBE++ |
| Digital Protocol | Tierl &Tier 2 (ETSITS 102 361) |
| Operation Temp | -30°C to +60°C |
| DC Supply | DC+12V |
| Dimensions | Ø227 |
| Receiver | |
| Sensitivity | 0.22Uv / 12dB BER 5% (Digital mode) |
|---|---|
| Adjacent Channel Selectivity | 60dB |
| Spurious Rejection | -36 dBm « 1 GHz) -30 dBm (>1GHz) |
| S/N Ratio | 40dB |
| Audio Response | +1 to -3dB |
| Audio Output | 10W |
