Analog Radio

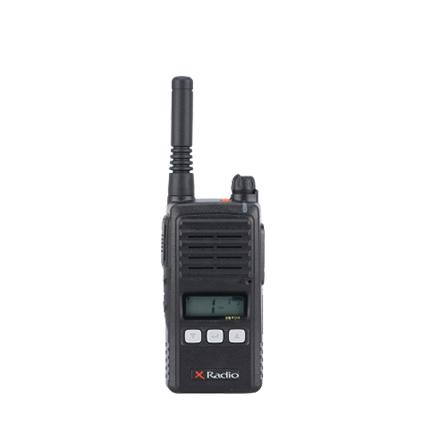

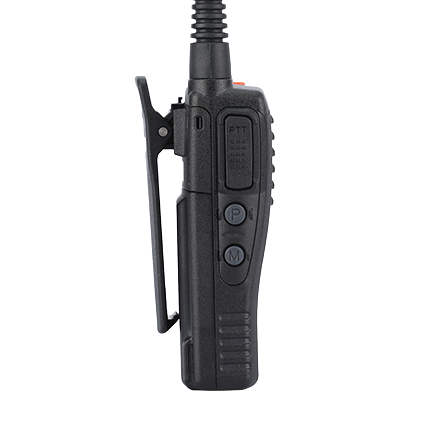

XV-100A/XU-100A

Features

  • 16Groups / 128 Channels are selectable.
  • Call guard Squelch 53 CTCSS / 208 DCS
  • Built-in Compander
  • Normal Scan / Priority Scan
  • 10 step VOX contro
  • BCL / BCLO / TOT
  • 5Step Squelch control
  • Lone Worker
  • High-Quality Audio Output(Ø40 Speaker)
  • Battery Status Indicator
  • DC+3.7V 1,800mAH Li-ion Battery
General Specification
Frequency Range XV-100A : 140 ~ 174 MHz
XU-100A : 440 ~ 470MHz
Channel Capacity 128
Channel Spacing 12.5KHz
Dimensions 98mm(H)×49mm(W)×26mm(D)
Dust & Waterproof IP54
Battery DC+3.7V 1,800mAH Lithium-ion
Weight 150g
Receiver
Sensitivity 0.20V 12dB
S/N Ratio 40dB
Audio Response +1 ~ -3 dB
Audio Distortion Less than 4% at rated output
Output Power 1 Watt (8Ω)
Transmitter
RF Power Output 2 Watt
Spurious and Harmonic 65dB
Audio Response +1 ~ -3 dB
S/N Ratio 40dB
2 unit charger
2 unit charger
Battery
Battery
Charger
Charger
Belt Clip
Belt Clip
Hand Strip
Hand Strip
